Geofencing Guide – Geofence Settings, Detected Arrival And Departure

When executing routes, your drivers and field employees are required to manually mark customer addresses as “Arrived” to indicate arriving at the destination. After finishing workflows and departing from customer locations, field employees are required to mark the corresponding destinations as “Done“. For your convenience and security, Route4Me provides geofences that automatically detect when and where your team members visit or leave customer locations. Geofences generate immutable “Arrival Time” and “Departure Time” timestamps that can’t be modified. To accommodate your unique business needs and ensure you’re always on the same page with your customers, Route4Me enables you to create geofences with customizable parameters. Moreover, gain further insight into your operations with detailed geofence tracking analytics.

Geofence Settings – Geofence Type, Size, Time On Site And Check-In Speed

To enable geofencing and customize geofence settings on your best route planning software account, go to “My Account” and “Account Settings” from the Navigation Menu. Then, select the “Geofencing” tab on the left, where you can configure the shape, size, required time on site, and maximum check-in speed for your geofences. These settings are important for ensuring field employees visit geofenced destinations and provide you with essential visitation data.

On the Geofence Settings screen, you can select your Geofence Type between square and circle, depending on your routing or tracking needs. To do so, open the “Type” dropdown menu and select “Square” or “Circle“. Depending on the unique factors of your destinations and routing operations, each Geofence Type may provide more accurate detection and avoid errors.

Furthermore, depending on the specifics of your routing operations and customer destinations, you may need smaller or larger geofences. To configure the size of your geofences, input the preferred size in the “Size” field in meters. Additionally, larger or smaller geofences combine with maximum allowed check-in speed to fine-tune your detection parameters.

Moreover, to ensure compliance and that your field employees are completing visitation of addresses, you can define how long a user must stay within your geofences for the system to detect the corresponding destination as Departed upon leaving. Input the desired time in the “Time On Site” field, measured in seconds. If you input 180 seconds into the “Time On Site” field, whenever your team members enter a geofence, they’ll have to stay within the geofence for more than 180 seconds for the system to detect the destination as Departed and create the “Departure Time” timestamp. The total Time on Site is displayed as “Detected Time On Site” in the Destination Info panel.

For security and safety purposes, and as an additional method of ensuring drivers are visiting your destination, you can set a “Maximum Check-in Speed” for a destination to be detected as Visited. If the defined speed is exceeded when entering geofences, the addresses will not be detected as Arrived. For example, if the “Max Check-in Speed” is set to 15 mph, and the driver enters the geofence at 20 mph, the geofence will not be detected as Arrived until the vehicle slows to less than 15 mph.

Furthermore, Vehicle Position Refresh Rate dictates how often the position of the vehicle is synched and updated in the system. The refresh rate can be as quick as updating the vehicle’s position every second. Vehicle position updates can be triggered either by the Route4Me Mobile Apps or a telematics devices on your GPS vehicles. You can access the Vehicle Position Refresh Rate setting when you establish a Telematics Connection through the Telematics Gateway. Specifically, each time a vehicle’s position is updated, a breadcrumb indicator is generated on the map. Furthermore, hover over breadcrumbs to view the speed, time, and coordinates for that location update.

Geofences On Map – Enable Geofences In Route Editor And Routes Map

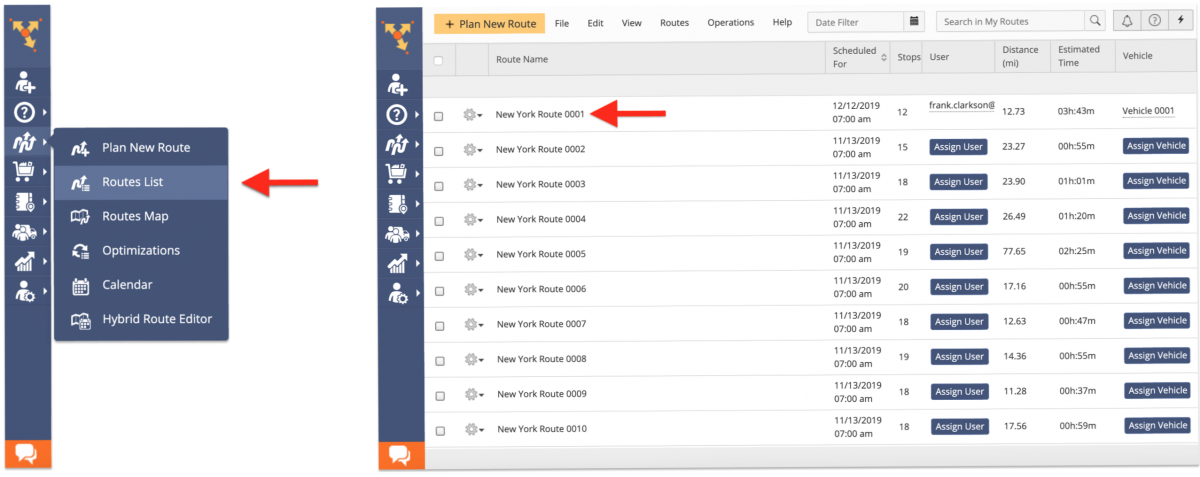

To view the geofences of a route on the map, open it in the Route Editor or open multiple routes on the Routes Map. To do so, go to “Routes” and then “Routes” from the Navigation Menu. Then, click the Open Icon next to the preferred route. To open multiple routes, check the boxes next to them, click “View” from the top menu bar, and select “View on Multiple Routes Map“.

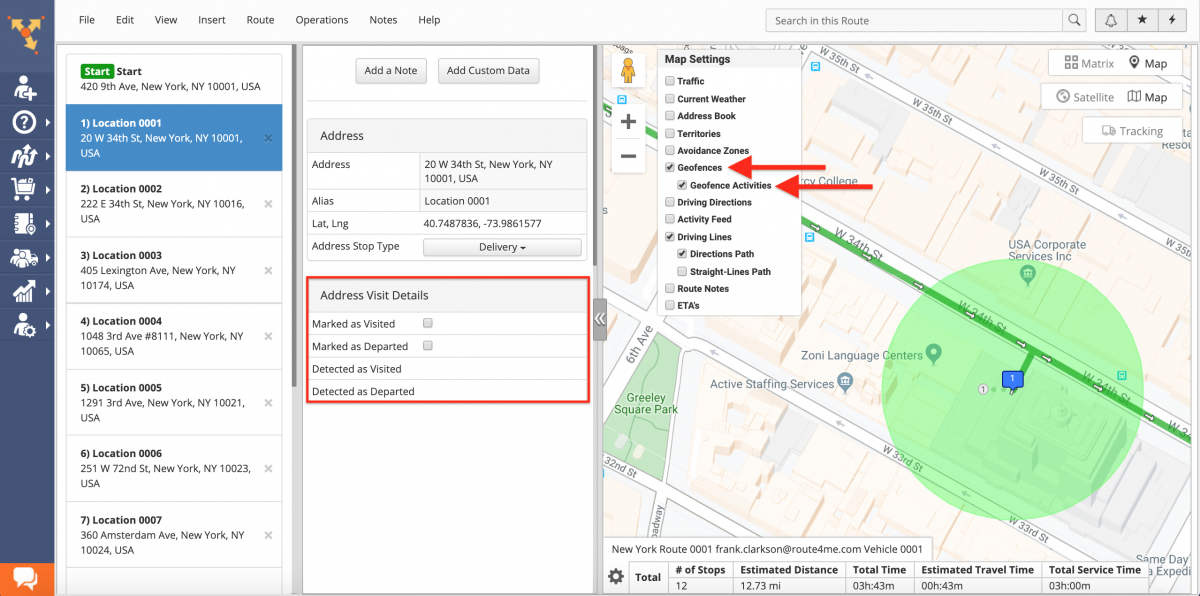

After that, on the Route Editor, click the Map Setting Icon and check the “Geofences” box. Once enabled, your geofences will appear around destinations on the map. The displayed geofence areas correspond in shape and size to your geofence settings.

To enable geofences on the multiple Routes Map, click the “Map Settings” button. Then, check the box labeled “Geofences” to enable geofences on the Interactive Map. Additionally, check the box labeled “Geofence Activities” to display markers on the map for the “Arrival Time” and “Departure Time” timestamps.

Detected Arrival And Departure Timestamps And Map Markers

To view the detected visitation and departure timestamps of destinations on a particular route, open the route in the Route Editor from your Routes List or Routes Map. Then, click the preferred destination to open its Destination Info panel. Next, locate the “Visit Details” section with automatically detected and manually marked visitation and departure times in the “Reported Visit Time” and “Detected Visit Time” subsections, respectively. Additionally, learn more about the difference between automatically detected and manually marked visitation and departure times further in this guide.

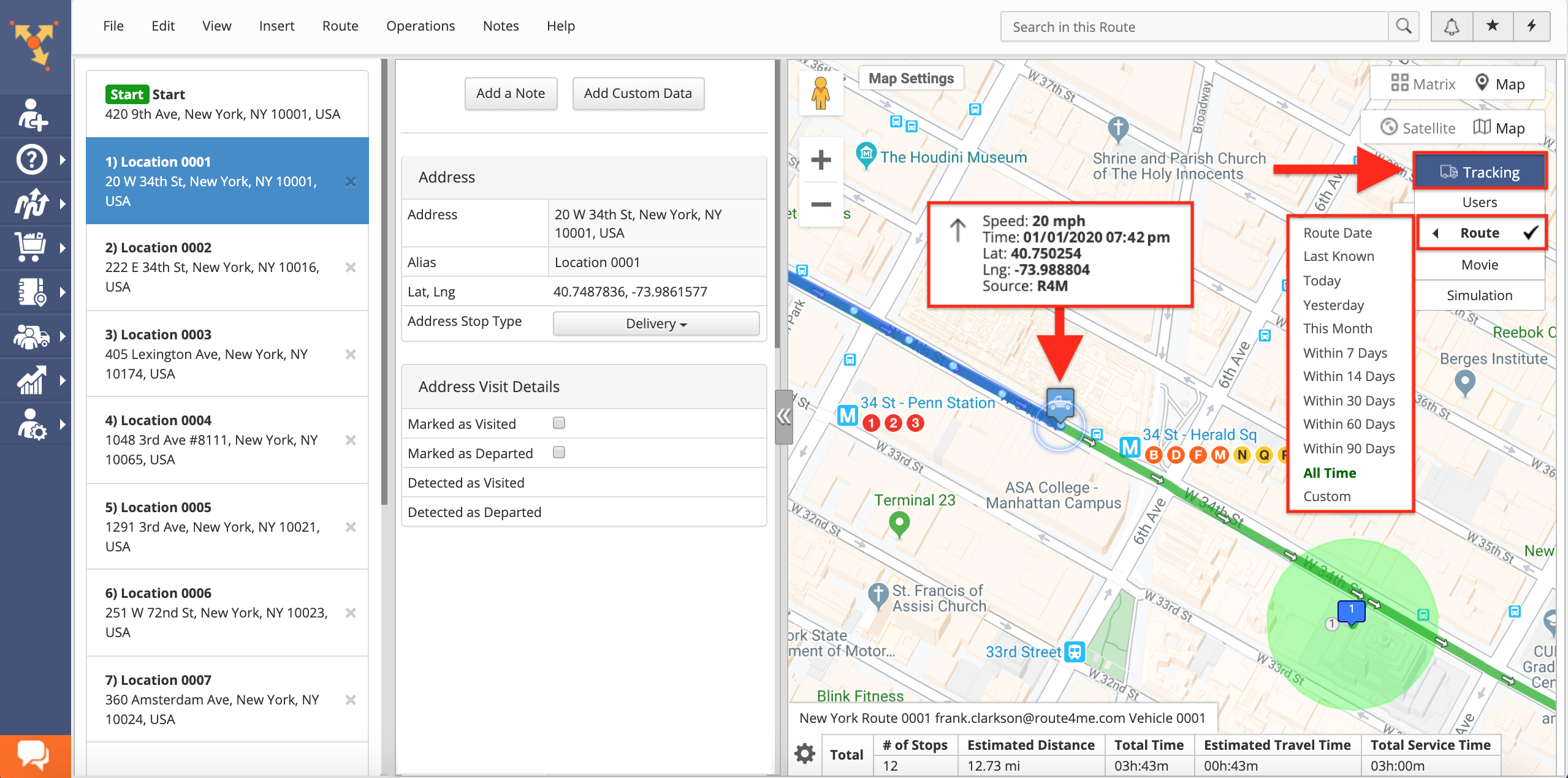

Furthermore, you can enable user tracking to view the movement of your team members on the map in near real-time. To do so, click the Tracking Icon on the top left of the map and select “Breadcrumbs” to enable vehicle path tracking with breadcrumb indicators corresponding to the coordinates where the vehicle’s position was updated. Once enabled, you can view your team members moving on the map.

Detected As Arrived Timestamp And Map Marker

The detected “Arrival Time” timestamp is generated when a vehicle enters the geofence around a destination. When a vehicle enters a geofence, location data from the driver’s Route4Me iOS or Android mobile app, or third-party GPS device from a Telematics Provider, is sent to Route4Me. This generates an immutable “Arrival Time” timestamp that can’t be modified. To see the arrival timestamp, click the Eye Icon next to “Detected Visit Time” and select “Arrival“. In addition to the “Arrival Time“, you can see the location where the geofence was detected as Arrived on the minimap. The arrival location may be partway into the geofence due to geofence settings or vehicle position refresh rate.

Detected As Departed Timestamp And Map Marker

The detected “Departure Time” timestamp is generated when a vehicle departs the geofence around a destination. When a vehicle leaves a geofence, location data from the driver’s Route4Me iOS or Android mobile app, or third-party GPS device from a Telematics Vendor, is sent to Route4Me. This generates an immutable “Departure Time” timestamp that can’t be modified. To see the departure timestamp, click the Eye Icon next to “Detected Visit Time” and select “Departure“. In addition to the “Departure Time“, you can see the location where the geofence was detected as Departed on the minimap. The departure location may be outside the geofence due to geofence settings or vehicle position refresh rate.

Time On Site – Detected Time Spent In Geofence Area

Geofence settings enable you to set a minimum required Time on Site to successfully detect the geofenced area as departed when a vehicle leaves a geofence. To view the Detected Time on Site of a destination, open the corresponding route in the Route Editor and click the destination to open the “Destination Info” panel. Detected Time on Site is displayed in the “Visit Details” section. The reported Time on Site is displayed as “Reported Visit Time” and is the difference between the time the driver marked the destination as “Arrived” and then “Done” on the Route4Me Mobile App. The “Detected Visit Time” is the difference between the time the geofence was detected as “Arrived” and “Departed“.

Mobile Apps Route Navigation And Telematics Vehicle Tracking

Furthermore, location updates are sent to Route4Me from the Mobile Driver Apps or installed Telematics Device on GPS vehicles if you’ve established a Telematics Connection through the Telematics Gateway. This enables you to track the position of drivers and vehicles in real-time as vehicle location updates can be sent as often as once a second. Additionally, field employees can use the Route4Me app for iOS or Android to navigate routes and mark destinations as Arrived and Done, respectively.

Mobile Apps – Tracking Vehicles On Geofenced Routes With Mobile Navigation

The position of vehicles is updated according to the Vehicle Position Refresh Rate, allowing for real-time tracking. Position updates are visible on the map in the Route Editor and Routes Map when tracking and breadcrumbs are enabled. Each breadcrumb corresponds to a location update sent to the system by the Mobile App as field employees navigate routes. Additionally, click a breadcrumb to view the speed, times, coordinates, and source of the update. Specifically, location updates sent from an iOS device have the “ROUTE4ME” source, while position updates sent from the Android app have the “R4M” source.

Telematics Vehicles – Tracking GPS Vehicles On Geofenced Routes With Telematics Integrations

Alternatively, if you’ve established a telematics connection through the Telematics Gateway, you can specify the Vehicle Position Refresh Rate. Location updates from the installed telematics device on GPS vehicles are sent to the system from your Telematics Provider. Position updates are visible in the Route Editor and on the Routes Map when tracking and breadcrumbs are enabled. Each breadcrumb corresponds to a location update. Additionally, click a breadcrumb to view the speed, timestamp, coordinates, and source. Specifically, updates sent from your telematics provider have the telematics provider as their source.

Automatically Detected VS Manually Marked Arrival And Departure

Geofencing enables you to automatically detect when and where a driver or field employee enters and leaves a specific geofenced area and provides corresponding timestamps and map markers. The Arrival Time and Departure Time values are also manually reported by team members. This generates two values, an automatic “Detected Visit Time” and a manual “Reported Visit Time“.

To view visitation timestamps, open the destination’s corresponding route in the Route Edit, click the destination to open its Destination Info, and find the reported and detected visit time values in the “Visit Details” section. NOTE: Discrepancies in the reported and detected visit times of destinations are due to reported times being manually submitted by users, while detected times are automatically detected through geofencing.

The reported “Arrival Time” timestamp is created when a driver or field employee manually marks a destination as “Arrived” from their Route4Me iOS or Android mobile app. Furthermore, you can view the exact location where a field employee marked a stop as “Arrived” by clicking the Eye Icon next to “Reported Visit Time“.

The reported “Departure Time” timestamp is created when a driver or field employee manually marks a destination as “Done” from their Route4Me iOS or Android mobile app. Furthermore, you can view the exact location where a field employee marked a stop as “Done” by clicking the Eye Icon next to “Reported Visit Time“. Additionally, the time between the reported “Arrival Time” and “Departure Time” is shown as the “Reported Time On Site” value.

The detected “Arrival Time” and “Departure Time” timestamps are created when a driver enters and leaves a geofence, respectively. Furthermore, you can view the exact location where a destination was detected as Arrived or Departed by clicking the Eye Icon next to “Detected Visit Time” and selecting the corresponding tab. NOTE: Depending on the defined Vehicle Position Refresh Rate, the position of map markers may change within geofences. This may also happen depending on the frequency your telematics provider sends updates to Route4Me. Additionally, if a required Time on Site is specified in your Geofence Settings, a geofence won’t be detected as Departed until the driver spends the specified time within the geofence.

Client-Side Geofencing Advanced Configurations

In addition to the default geofencing functionality, Route4Me Advanced Configuration Editor enables you to trigger reported visitation events automatically. Triggers will be used to set destination statuses, automatically generate reported values, and more. The default geofencing functionality is not affected by any of the following advanced configurations.

Geofence Driver Notifications And Alerts For Adding Notes

Moreover, you can set up geofencing notifications that are triggered when a driver enters a geofence. Drivers don’t receive such notifications by default. When enabled, geofence-triggered alerts notify your drivers to add notes that can serve as proof of service or electronic proof of delivery (ePOD) to destinations. To enable this feature, define a specific custom data field in the Route Editor for each destination. This can be added to route addresses either by adding a corresponding column in the route planning spreadsheet or added manually for each address in the Route Editor after the route has been planned.

Specifically, add a column with the header “custom_trigger_open_notes_dialog” and type “TRUE” on the row of each destination you want to apply the automatic geofence-triggered driver notification to add notes.

To enable automatic geofence driver notifications for adding notes after a route has been planned, open the preferred route in the Route Editor. Then, click a destination to open its respective Destination Info panel. Next, in the “Custom Data” section, click the Gear Icon to open the “Manage Custom Data” window. After that, in the “Manage Custom Data” window, click the “Add Field” button. Then, enter “custom_trigger_open_notes_dialog” in the “Field Name” bar and “TRUE” in the “Field Content” bar.

Then, when the driver enters the corresponding destination geofence, they are notified with a visual and audio notification that the corresponding notes section must be completed for the respective destination. Upon ending navigation and marking the destination as “Arrived” from the mobile app, the notes section will open automatically and must be completed for the driver to successfully mark the destination as “Done“.

Geofencing Analytics – Export Route Visitation Geofence Data

Furthermore, you can export geofencing data and analytics for any of your routes. To do so, open the preferred route in the Route Editor and click “File” from the top menu bar. Then, hover over “Export Route” and select “Export CSV” to customize which items to include in your route data export spreadsheet. Additionally, learn more about exporting route data.

After that, select the preferred geofencing data and analytics items to include in your route export spreadsheet by selecting them in the left column. Then, click the export button to download your selected data and analytics items as a spreadsheet.

Specifically, learn about the available actionable intelligence geofencing analytics items you can export in the table below.
