Color Coding Addresses and Setting Icon Override with Advanced Search Groups

Your Route4Me Address Book (List/Map) is a centralized database where you and your team members can securely store and manage the information about thousands of customers’ locations, depots, commercial facilities, warehouses, and any other relevant prospects or real-world locations. With Route4Me’s Advanced Search Groups Add-On, you can effortlessly structure, filter, and utilize all this data for your particular business needs or unique business model. Moreover, you can use search groups for color coding all your addresses and adding a custom icon to each one of them. Color coding allows you to customize how you view your addresses on the map, as well as how you want your team members to interact with those addresses. For example, you may want to color code your addresses for indicating particular sales stages, client statuses, location types, visitation priority, and more.



To color code your addresses and set up icon override, first, go to “Address Book Map” from the navigation menu.

Color Coding Addresses and Setting Icons Override Using Advanced Search Groups



You can color code your addresses when picking them right from the map and adding to your Address Book (learn more). To learn more about adding addresses and setting up their color and icons using the Address Book List, visit this page.

Color Coding Addresses and Setting Icons Override Using Advanced Search Groups



You can also color code your addresses when editing them right on the map (learn more). To learn more about editing addresses and changing their color and icons in the Address Book List, visit this page.

Color Coding Addresses and Setting Icons Override Using Advanced Search Groups



When you are creating a new or editing an existing address in your Address Book Map/List, you can color-code and assign a custom icon to this address in the “Location” tab.

Color Coding Addresses and Setting Icons Override Using Advanced Search Groups



Once you select a particular color and assign a custom icon to the address, this address will be displayed on the map accordingly.

Color Coding Addresses and Setting Icons Override Using Advanced Search Groups



To color code an entire search group of addresses and set up custom icon override for each address, first, create a new search group or use an existing one to display the addresses that you want to modify on the map.

Color Coding Addresses and Setting Icons Override Using Advanced Search Groups



After that, use one of the drawing tools in the top left corner of the map to draw an area around the addresses that you want to modify.

Color Coding Addresses and Setting Icons Override Using Advanced Search Groups



To set up icon override for all addresses in the area, first, right-click on this area and then select “Assign Icon to Addresses” from the menu.

Color Coding Addresses and Setting Icons Override Using Advanced Search Groups



Alternatively, click on the gear icon next to the corresponding search group and then select “Set Icon Override” from the menu.

Color Coding Addresses and Setting Icons Override Using Advanced Search Groups



Next, select the preferred custom icon from the list and then click “OK” to continue.

Color Coding Addresses and Setting Icons Override Using Advanced Search Groups

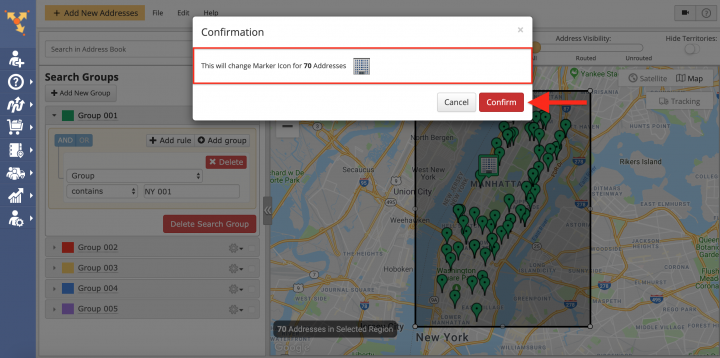

After that, check for how many addresses you are setting up new icons and then click on the corresponding button to confirm the action.

Color Coding Addresses and Setting Icons Override Using Advanced Search Groups

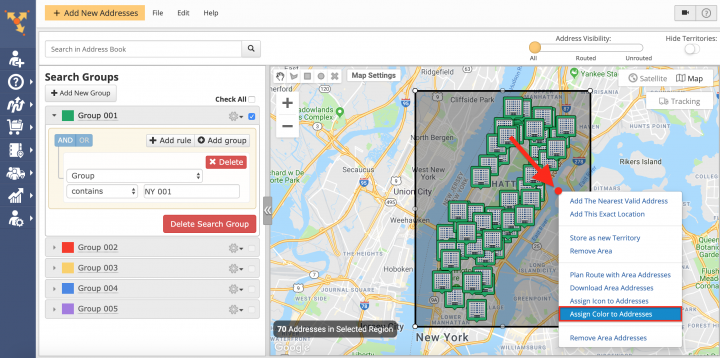

To color code all addresses in the corresponding area, first, right-click on this area and then select “Assign Color to Addresses” from the menu.

Color Coding Addresses and Setting Icons Override Using Advanced Search Groups



Next, select the preferred color from the list and then click “OK” to proceed.

Color Coding Addresses and Setting Icons Override Using Advanced Search Groups



After that, check how many addresses you are color coding and then click on the corresponding button to confirm the action.

Color Coding Addresses and Setting Icons Override Using Advanced Search Groups



Next, you need to disable the search group(s) that you used for overriding icons and color coding addresses. To do so, uncheck the box next to the corresponding search group and then the color-coded addresses with custom icons will be displayed on the map accordingly.

Color Coding Addresses and Setting Icons Override Using Advanced Search Groups

NOTE: Search group colors override address colors. Thus, make sure that you disable all search groups to view your addresses on the map with their color and not the color of their search group(s).

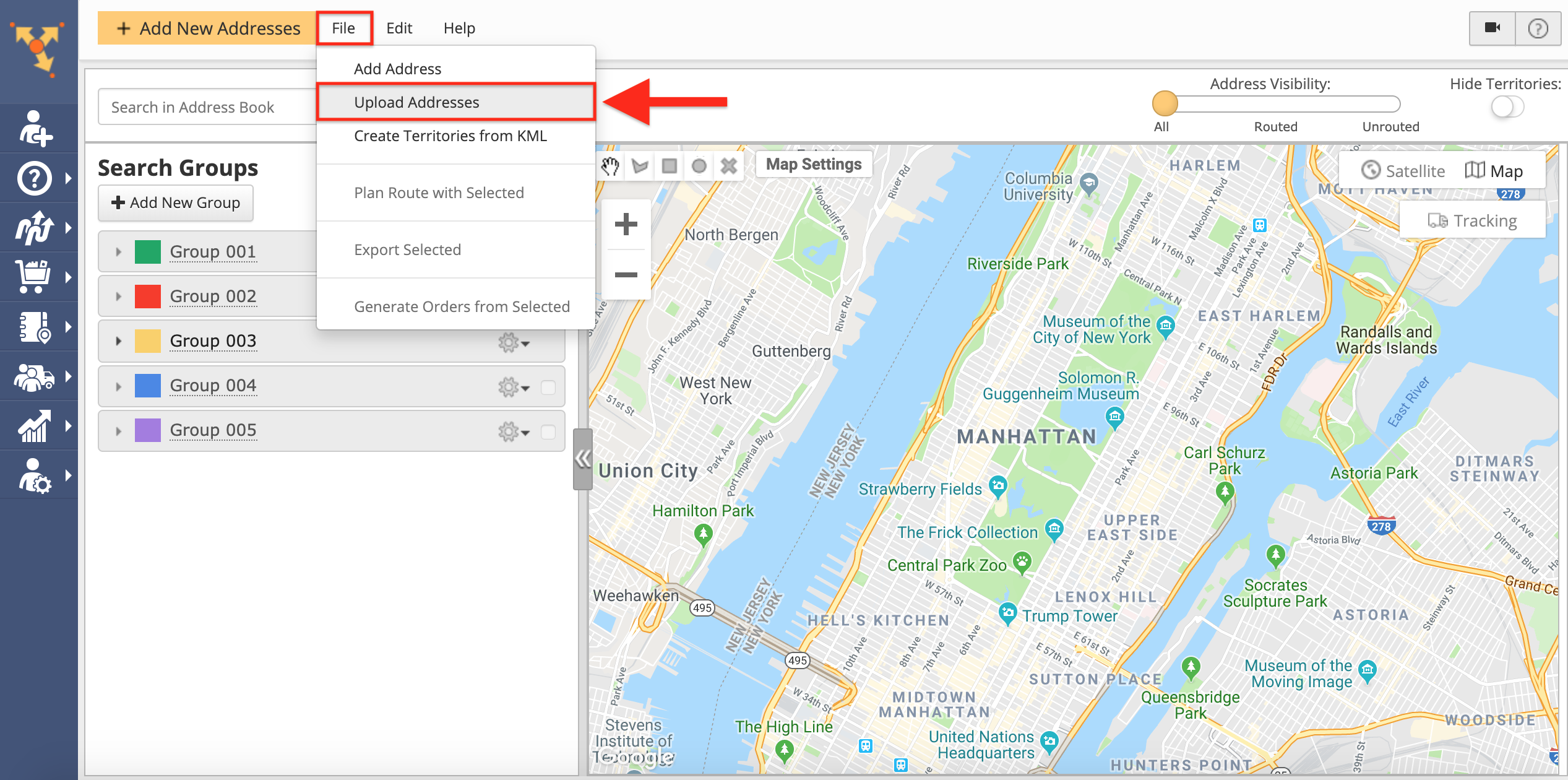

You can also bulk upload color coded addresses into the system. To do so, on the Address Book Map, first, go to “File” and then select “Upload Addresses” from the list.

Color Coding Addresses and Setting Icons Override Using Advanced Search Groups



After that, upload a spreadsheet with reserved attributes (i.e., Alias, Address, Cube, etc.) and the “Color” column into the system. In the “Color” column, you can define an individual color for each address you are importing. To learn more about importing addresses into the system, visit this page.

Color Coding Addresses and Setting Icons Override Using Advanced Search Groups



Once you upload the spreadsheet with color-coded addresses into the system, these addresses will be displayed on the Address Book Map in the corresponding color(s).

Color Coding Addresses and Setting Icons Override Using Advanced Search Groups
